Question # 14

Refer to the exhibit.

After configuring IS-IS on routers R1 and R2, an engineer notices that only the loopback interface at 2000:1::1 /96 is known to router R2. Which change must be made so that only Loopback2 is advertised from R1 to R2?

Options:

A.

Configure the router isis areal command under the LoopbackO interface on R1.

B.

Remove the advertise passive-only command under the IS-IS address family ipv6 configuration

C.

Remove the ipv6 router isis areal command under the Loopback2 interface on R1.

D.

Remove the passive-interface Loopback0 command under the router isis areal configuration.

Buy Now
Question # 15

Refer to the exhibit.

R3 is:

Which command must the engineer implement to resolve the issue?

A R3# ip msdp sa-filter in 192.168.3.1

B. R3# no ip msap sa-filter in 192.168.1.1

C R3# no ip msdp peer 192.168.1.1

D. R3# ip msdp sa-filter out 192.168.1.1

Options:

A.

failing to accept multicast RP information from Domain-A

B.

advertising MSDP SA messages to R1 and R4

C.

receiving SA messages only from R4

Buy Now
Question # 16

Refer to the exhibit An engineer is troubleshooting a networking issue with several symptoms

  • The shortest path from router R1 to R8 is underused and the longest path is overused
  • Traffic from 10.1.1 1 to 10 8 8 8 is routed on the longest path
  • Traffic between the R1 and the application server is experiencing packet drops and latency problems.

Which action resolves the issue?

Options:

A.

Configure route leaking for the IP address Of the application server on router RI.

B.

Increase the RI to R2 link metric to 20.

C.

Configure a Level 2 IS-IS domain on router RI.

D.

Block the advertisement of the application server IP address to router R6.

Buy Now
Question # 17

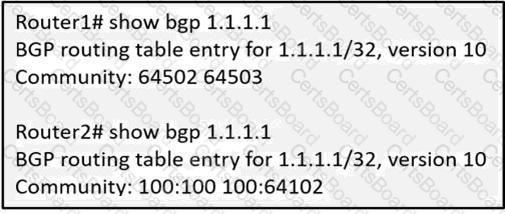

Refer to the exhibit.

An engineer working on a client’s network is trying to solve the BGP community issue on R1 and R2 routers. After displaying the BGP entries, the engineer notices that both routers still have different outputs. Which action must the engineer perform to any of the routers to correct the problem and get the same output?

Options:

A.

Execute the Ip bgp-community new-format command in Router1 .

B.

Remove the Ip bgp-community new-format command in Router1 .

C.

Advertise the route to Router2 as standard community.

D.

Advertise the route to Router2 as extended community.

Buy Now
Question # 18

Refer to the exhibit.

The UserA device fails to recede IPTV streaming traffic from the source While debugging the issue a network engineer finds that routers RB and RC receive the multicast traffic normally RC receives subscription messages from UserA to join the IPTV stream Which action must the engineer lake on router RA to correct this problem?

Options:

A.

Configure ip pim ssm with ip igmp version 2 on interface GigabitEthernet 1/0.

B.

Remove the ip pim ssm default configuration and replace it with ip pim rp-address 10.10.1.3

C.

Change ip igmp version 2 to ip igmp version 3 on interface GigabitEthernet 1/0.

D.

Configure ip pim bidir-enable in global mode and add ip pim rp-address 10.10.10.3

Buy Now
Question # 19

What is a feature of SR-PCE?

Options:

A.

It learns the topology information via OSPF or IS-IS only

B.

It learns the topology information via OSPF or IS-IS or through BGP-LS.

C.

It uses the IGP metric in its path calculations to optimize reachability.

D.

It uses the TE metric in its calculations to optimize the cumulative TE metric

Buy Now
Question # 20

In a PIM-SM environment, which mechanism determines the traffic that a receiver receives?

Options:

A.

The receiver explicitly requests its desired traffic from the RP on the shared tree.

B.

The receiver explicitly requests traffic from a single source, which responds by forwarding all traffic.

C.

The RP on the shared tree floods traffic out of all PIM configured interfaces.

D.

The receiver explicitly requests traffic from each desired source, which responds by sending all traffic.

Buy Now
Question # 21

Refer to the exhibit. Routers CE1 and CE2 are in AS 65530. which is multihomed for Internet access. An engineer expects inbound traffic to AS 65530 to arrive from PE1. but it is coming from PE2 instead PE1 and PE2 routers are connected with CE routers through the same bandwidth Which action must be taken to correct the problem?

Options:

A.

On router CE2, configure inbound routes from PE2 to CE2 with a local-preference value of 50 or greater.

B.

Configure router CEI to prepend the AS path to routes it receives from PE 1.

C.

Set the local-preference value on router CEI to 100 or greater

D.

On router PEI , change the origin for routes that are redistributed from CEI to CE2.

Buy Now
Question # 22

Refer to the exhibit After recent configuration changes to a customer's network, a network engineer notices that R2 cannot communicate with R3 Both FastEthemet interfaces on R2 and R3 are up and configured with the correct IP addresses MD5 password configured en R2 and R3 match with no issues What is the minimum change the engineer must make to enable R2 and R3 to communicate and fix the problem?

Options:

A.

Configure a loopback interface on R2 and assign it to area 0.

B.

Define area 2 as a NSSA on R2 and R3

C.

Configure virtual links between RI and R3.

D.

Configure interface F0/0 on RI and R2 to be in area O.

Buy Now
Question # 23

What is the characteristic of enabling segment routing for IGPs?

Options:

A.

Segment routing must first be enabled under the routing process and then globally.

B.

Segment routing must first be enabled globally and then under the routing process.

C.

Segment routing must be enabled only globally.

D.

Segment routing must be enabled only under the routing process.

Buy Now
