In UML, the multiplicity of an association end specifies how many instances of the class at that end can participate in a single association. A lower multiplicity of one (1) at one end of an n-ary (where n > 2) association implies that there must be at least one link that combines the values of the other ends, but it doesn't require that a link exists for every possible combination. Therefore, it's possible for some combinations to exist as links, while others do not, which is indicated by the option that links combining the values of the other ends may exist or may not exist. This interpretation is consistent with the definition of multiplicity in associations as outlined in the UML 2.x Superstructure Specification.

In the context of UML 2.0 and the specifications around Decision Nodes, option C is the correct choice. According to the UML 2.5 specification, when a Decision Node has an incoming control flow and adecisionInput, thedecisionInputmust have a single input parameter (in Parameter). This ensures that the decision node can evaluate the decision input using the value passed through the incoming control flow. This mechanism is crucial for decision-making processes within activity diagrams where decisions are made based on dynamic data provided at runtime.

References:

• UML 2.5 Specification: The specification details the properties and behaviors of Decision Nodes within activity diagrams, particularly emphasizing how decision inputs and their parameters are handled.

The compiled model resulting from the Action Language for Foundational UML (fUML) must have the equivalent effect as a model resulting from the mapping to fUML. In other words, the compiled model should behave in the same way as if it were directly executed using the fUML execution semantics

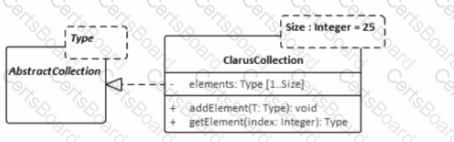

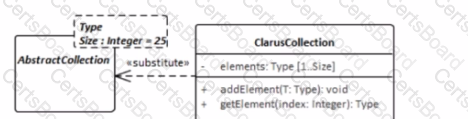

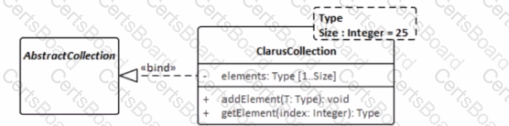

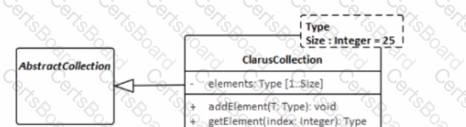

The UML model fragment that best supports the project's requirements for collection class design is one that allows the fixed length of the collections to be specified but also permits flexibility for collections longer than 25 elements. In Option C, theClarusCollectionclass is shown as a template class with a template parameterSizeset to a default of 25. However, the dashed lines and the separate box forTypeandSizeindicate that while there is a default value, it can be overridden. This means that theSizecan be parameterized, thus allowing the creation ofClarusCollectioninstances with different fixed lengths, not just 25. This design will enable most collections to be created with the default size of 25, but also allows for creating collections with sizes greater than 25, providing the flexibility required by the project's requirements. This adheres to the UML 2.x specification on templates and parameterization.

Alf (Action Language for Foundational UML) is essentially a textual notation for UML behaviors that can be attached to a UML model in any place where a UML behavior can be specified. Alf Input text serves as a concrete representation for UML model elements within the fUML, allowing for behavioral modeling using a textual surface notation. This facilitates a model-driven process capable of generating fully executable source code, thus integrating structural modeling with behavioral modeling12. Alf allows for detailed behavioral specification in a textual form as opposed to the more cumbersome graphical activity diagram notation, making it a practical tool for specifying the operational behavior of a system within the UML framework2.

In the MOF class hierarchy, the class ‘Element’ sits at the top. It is the superclass of all classes defined in MOF and is an implicit superclass of all metaclasses defined using MOF1. This superclass relationship to ‘Element’ does not need to be explicitly declared in the metamodels.

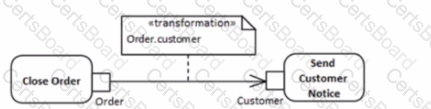

The correct answer is C, which uses a transformation edge to indicate that when an order is closed, information is transformed or processed to notify the customer. This is expressed in UML with an object flow that has a transformation property, which specifies how an object is transformed from one state to another as it flows along the edge. Thisis appropriate for a scenario where closing an order leads to the creation of a customer notice, implying some form of transformation or processing of the order information to generate the notice.

References:

• UML 2.5 Specification: The UML 2.5 specification details how object flows with transformations can be used to show that one piece of data is transformed into another as it flows from one action to another.

 In the context of the Meta-Object Facility (MOF), a metamodel is essentially a model that defines the structure and semantics of a modeling language. It is a set of constructs and rules that describe how models can be constructed for a particular domain or purpose. The MOF itself is an example of a metamodel because it provides the language for defining other metamodels, such as the UML metamodel1.

In UML, operations can have preconditions defined, which are constraints that must be true before the operation is invoked. When an operation is redefined in a subclass, it is possible to add new preconditions or alter existing ones. Redefining an operation does not typically allow for changes to its scope or the addition of templates, but the preconditions may be expanded to reflect the semantics of the subclass. This is in line with the behavioral specification of operations in UML, where preconditions are part of the behavioral contract of an operation, as described in the UML 2.x Superstructure Specification.

The semantics of MOF elements are typically provided in the specification as natural language descriptions1. This approach allows for a clear and understandable explanation of the elements and their intended use within the framework.
