Understanding Unnumbered BGP:

Unnumbered BGP (Border Gateway Protocol) allows BGP peering between routers without assigning specific IP addresses to the interfaces. Instead, it uses the loopback address or another router identifier for the BGP session, making IP address management more straightforward in large-scale networks.

Family inet Configuration:

Option C:The family inet configuration is required on each interface involved in unnumbered BGP peering to support IPv4 address families. This ensures that IPv4 peering sessions can be established between devices.

Automatic IPv4 Peering:

Option D:Unnumbered BGP peering automatically provisions IPv4 peering sessions. This simplifies the configuration by eliminating the need to manually assign and manage IP addresses for BGP peering.

Conclusion:

Option C:Correct—Unnumbered BGP requires the family inet configuration for IPv4.

Option D:Correct—Unnumbered BGP automatically provisions IPv4 peering, simplifying setup.

Zero Touch Provisioning (ZTP):

Juniper Networks' ZTP (Zero Touch Provisioning) process automates the deployment of new devices by allowing them to fetch and execute scripts for configuration and setup as they are powered on and connected to the network.

Supported Scripting Languages:

The Junos OS supports several scripting languages that can be used during the ZTP process:

Shellscripts are often used for general automation tasks.

Pythonis a widely supported language in Junos, offering powerful scripting capabilities for automating network tasks.

SLAX(Service Logic Execution Environment) is a scripting language specific to Junos, designed to automate configuration tasks and simplify network operations.

Conclusion:

Option D:Correct—Junos ZTP supports Shell, Python, and SLAX, making it the correct choice among the provided options.

Issue Overview:

The leaf devices in an IP fabric using eBGP are advertising and receiving all routes, but the routes are not being installed in the routing table and are marked as hidden. Thistypically indicates an issue with the BGP configuration, particularly with next-hop handling or AS path concerns.

Corrective Actions:

B. You need to configure a next-hop self policy:This action ensures that the leaf devices modify the next-hop attribute to their own IP address before advertising routes to their peers. This is particularly important in eBGP setups where the next-hop may not be directly reachable by other peers.

D. You need to configure multipath multiple-as:This setting allows the router to accept multiple paths from different autonomous systems (ASes) and use them for load balancing. Without this, the BGP process might consider only one path and mark others as hidden.

Incorrect Statements:

A. You need to configure as-override:AS-override is used to replace the AS number in the AS-path attribute to prevent loop detection issues in MPLS VPNs, not in a typical eBGP IP fabric setup.

C. You need to configure loops 2:There is no specific BGP command loops 2 relevant to resolving hidden routes in this context. It might be confused with allowas-in, which is used to allow AS path loops under certain conditions.

Data Center References:

Proper BGP configuration is crucial in IP fabrics to ensure route propagation and to prevent routes from being marked as hidden. Configuration parameters like next-hop self and multipath multiple-as are common solutions to ensure optimal route installation and load balancing in a multi-vendor environment.

Telemetry in Data Centers:

Telemetry allows for real-time monitoring of network devices by collecting and exporting data such as interface statistics, routing table updates, and other key metrics.

Vendor-Neutral Data Models:

Option A:JTI (Junos Telemetry Interface) OpenConfig sensors use a vendor-neutral data model, which is important for ensuring compatibility across different network devices and systems. OpenConfig is an industry-standard model, which facilitates integration with various telemetry collection systems.

Conclusion:

Option A:Correct—OpenConfig sensors provide a vendor-neutral solution for telemetry, ensuring broad compatibility and flexibility in data center environments.

Understanding Pure IP Fabric:

A pure IP fabric is a network design where all devices operate at Layer 3, meaning that each device in the fabric is a router that makes forwarding decisions based on IP addresses.

Layer 2 Support:

In a pure IP fabric, traditional Layer 2 protocols such as Spanning Tree Protocol (STP) or VLANs are not supported. Instead, the network relies entirely on Layer 3 routing protocols to manage traffic between devices.

Routing Functionality:

Since devices in an IP fabric operate as Layer 3 routers, they handle IP routing and provide network services based on IP addresses, not on MAC addresses or Layer 2 switching.

Conclusion:

Option A:Correct—Devices in an IP fabric function as Layer 3 routers.

Option D:Correct—A pure IP fabric does not support traditional Layer 2 protocols, making it a purely routed environment.

Understanding Oversubscription Ratio in IP Fabrics:

The oversubscription ratio in an IP fabric typically refers to the ratio of the available bandwidth at the edge of the network (leaves) to the available bandwidth at the core or spine. A 3:1 oversubscription ratio means that for every 3 units of bandwidth at the leaves, there is 1 unit of bandwidth at the spine.

Impact of Adding or Removing Leaf Devices:

Removing Leaf Devices:When you remove leaf devices, the amount of total edge bandwidth decreases while the bandwidth in the spine remains constant. This causes the oversubscription ratio toincreasebecause there is now less total bandwidth to distribute across the same amount of spine bandwidth.

Adding Leaf Devices:Conversely, when you add leaf devices, the total edge bandwidth increases. Since the spine bandwidth remains the same, the oversubscription ratio would remain the same if the additional leaves consume their share of the available bandwidth proportionally.

Conclusion:

Option C:Correct—Removing leaf devices increases the oversubscription ratio.

Option D:Correct—Adding leaf devices typically maintains the oversubscription ratio assuming uniform bandwidth distribution.

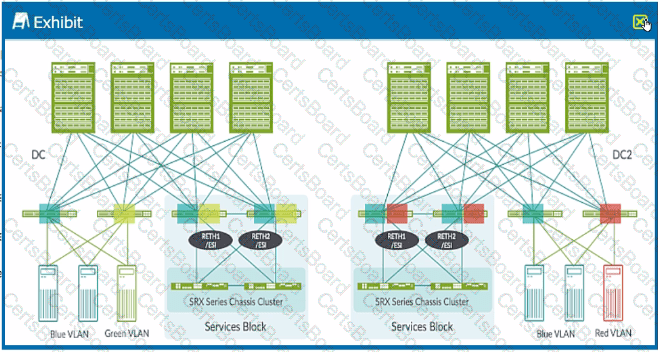

Interconnecting Data Centers:

The scenario requires interconnecting two data centers with unique IP spaces across an IP backbone. The key point is that bridging is not required, so Layer 3 routing methods must be used.

EVPN Configuration:

Option B:Establishing EVPN peering between the border leaf nodes in each data center is the most appropriate solution as it allows for exchanging routing information between the two data centers. This ensures that the routes are properly distributed without the need for L2 bridging.

Option C:Configuring Type 5 EVPN routes is necessary for advertising IP prefixes (Layer 3 routes) across the EVPN. Type 5 routes allow for the exchange of IP prefixes between the two data centers, enabling the necessary routing functionality without the need for bridging.

Conclusion:

Option B:Correct—Peering between border leaf nodes sets up the necessary route exchange between data centers.

Option C:Correct—Type 5 EVPN routes are essential for exchanging Layer 3 prefixes between data centers.

Understanding sFlow Monitoring:

sFlow is a packet sampling technology used to monitor traffic in a network. It sends sampled packet data and interface counters to an sFlow collector, which analyzes the traffic patterns.

Information Included in sFlow Datagram:

Option A:The datagram sent to the sFlow collector includes information about the interface through which the packets entered the agent (the switch or router). This is crucial for understanding where in the network the traffic was captured.

Option D:sFlow datagrams also include the source and destination VLAN for the sampled packets. This allows for detailed analysis of the traffic flow within different VLANs.

Conclusion:

Option A:Correct—The ingress interface is included in the sFlow datagram.

Option D:Correct—The source and destination VLANs are also included, providing context for the sampled traffic.

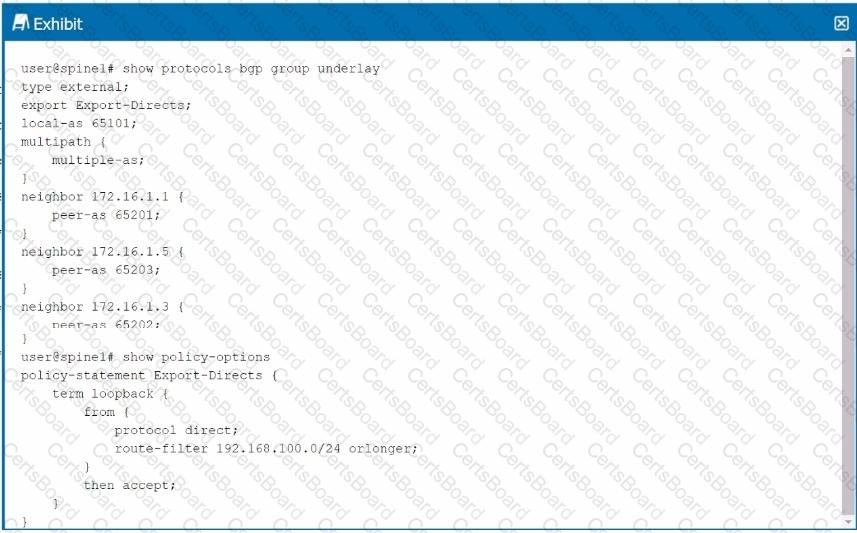

Understanding BGP Configuration in the Exhibit:

The exhibit shows a BGP configuration on spine1 with a group named underlay, configured to peer with directly connected interfaces of other devices in the network.

Multipath multiple-as:This statement allows the router to install multiple paths in the routing table for routes learned from different ASes, facilitating load balancing.

Key Statements:

A. The multihop statement is not required to establish the underlay BGP sessions:In this case, the BGP peers are directly connected (as indicated by their neighbor IP addresses), so the multihop statement is unnecessary. Multihop is typically used when BGP peers are not directly connected and packets need to traverse multiple hops.

D. Load balancing for the underlay is configured correctly:The multipath { multiple-as; } statement in the configuration enables load balancing across multiple paths from different autonomous systems, which is appropriate for underlay networks in data center fabrics.

Incorrect Statements:

C. The multihop statement is required to establish the underlay BGP sessions:This is incorrect because the peers are directly connected, making the multihop statement unnecessary.

B. Load balancing for the underlay is not configured correctly:This is incorrect because the configuration includes the necessary multipath settings for load balancing.

Data Center References:

BGP configurations in EVPN-VXLAN underlay networks are crucial for ensuring redundancy, load balancing, and efficient route propagation across the data center fabric.
