 OSPF Route Summarization Benefits:

Reduces Routing Table Size: By summarizing routes, multiple specific routes are combined into a single route. This reduces the number of entries in the routing table, making it more efficient and easier for the devices to process. This is critical in large networks to maintain performance and manageability.

Reduces Impact of Topology Changes: When a topology change occurs in one of the summarized routes, it does not need to propagate throughout the entire network. Only the summary route may need to be updated, which minimizes the impact and limits the scope of updates needed.

 Implementation in OSPF:

Configuration Example:

shell

Copy code

set protocols ospf area 0.0.0.0 range 10.1.0.0/16

This command summarizes the routes in area 0.0.0.0 to a single route of 10.1.0.0/16.

 References:

The documents provided, such as "network-mgmt.pdf" and other relevant configuration guides, emphasize these benefits as fundamental to efficient OSPF deployment​​​​.

B - because only one next hop in forwarding table C- becuse TTL=1 limiting bgp connection to be established only over loopbacks interface https://www.juniper.net/documentation/us/en/software/junos/bgp/topics/topic-map/multihop-sessions.html Use the multihop statement to alter the default use of the neighbor 's physical address. In addition, you can also specify a time-to-live (TTL) value in the BGP packets to control how far they propagate. We use a TTL value of 1 to ensure that the session cannot be established across any other backdoor links in the network.

To troubleshoot why ISP peers are not receiving any routes in a multihomed BGP setup, the following steps are essential:

Verify Active BGP Routes: Ensure that the BGP routes are active in the routing table. Only active routes can be advertised to BGP peers.

shell

Copy code

show route protocol bgp

Verify Export Policies: Check the export policies configured on your router. The export policies determine which routes are advertised to BGP peers. If these policies are incorrectly configured or missing, routes will not be advertised.

shell

Copy code

show configuration policy-options policy-statement

show configuration protocols bgp group export

References:

Useful Juniper Commands.txt

Tech Ops Managed Router Juniper Install Guide

https://www.juniper.net/documentation/us/en/software/junos/routing-policy/bgp/topics/example/bgp-advertise-peer-as.html

Understanding Multicast Listener Registration Protocols:

Multicast listener registration protocols are used to manage multicast group memberships on a network.

They allow devices to join or leave multicast groups dynamically.

Protocols Supported by Junos:

MLD (Multicast Listener Discovery):

Used for IPv6 multicast group management. It is the IPv6 equivalent of IGMP.

MLD allows routers to discover multicast listeners on a network.

IGMP (Internet Group Management Protocol):

Used for IPv4 multicast group management.

IGMP enables hosts to join and leave multicast groups and allows routers to manage multicast group memberships.

Verification and Configuration in Junos:

MLD and IGMP are supported on Juniper devices running the Junos operating system.

Configuration examples:

IGMP:

shell

Copy code

set protocols igmp interface ge-0/0/1.0

MLD:

shell

Copy code

set protocols mld interface ge-0/0/1.0

References:

Juniper IGMP Configuration Guide

Juniper MLD Configuration Guide

"Secondary interfaces are supported for LAN interfaces (the primary interface can be a LAN interface, but any secondary interfaces are treated as point-to-point unnumbered links over the LAN). In this scenario, you must ensure that there are only two routing devices on the LAN or that there are only two routing devices on the LAN that have secondary interfaces configured for a specific OSPF area." [https://www.juniper.net/documentation/us/en/software/junos/ospf/topics/topic-map/configuring-ospf-areas.html#id-example-configuring-multiarea-adjacency-for-ospf]

LLDP-MED (Link Layer Discovery Protocol-Media Endpoint Discovery) is an extension of LLDP (Link Layer Discovery Protocol) that provides additional functionalities specifically for voice over IP (VoIP) devices, including automatic negotiation of power requirements. This protocol is essential for automatically negotiating power with IP phones when they are connected to EX Series switches.

Steps:

Enable LLDP-MED:

set protocols lldp-med

Configure LLDP-MED on the interfaces:

set interfaces ge-0/0/0 unit 0 family ethernet-switching port-mode access

set interfaces ge-0/0/0 unit 0 family ethernet-switching interface-mode access

set interfaces ge-0/0/0 unit 0 family ethernet-switching vlan members default

set interfaces ge-0/0/0 unit 0 family ethernet-switching storm-control default

Commit the configuration:

References:

Useful Juniper Commands.txt

Tech Ops Managed Router Juniper Install Guide

Analyzing BGP Route Information:

The exhibit shows BGP route information for the prefix 203.0.113.0/24.

Both paths to this prefix are learned from the same BGP peer with IP address 192.168.10.36.

Understanding BGP Neighbors:

The presence of multiple paths for the same prefix does not necessarily indicate multiple neighbors.

In this case, the routes to 203.0.113.0/24 are both learned from a single neighbor (192.168.10.36), but via different interfaces (ae8.0 and ae7.0).

Conclusion:

The BGP routes in the exhibit indicate that the prefix is learned from one neighbor but via different interfaces.

References:

BGP route analysis

Understanding BGP multi-path and neighbor relationships

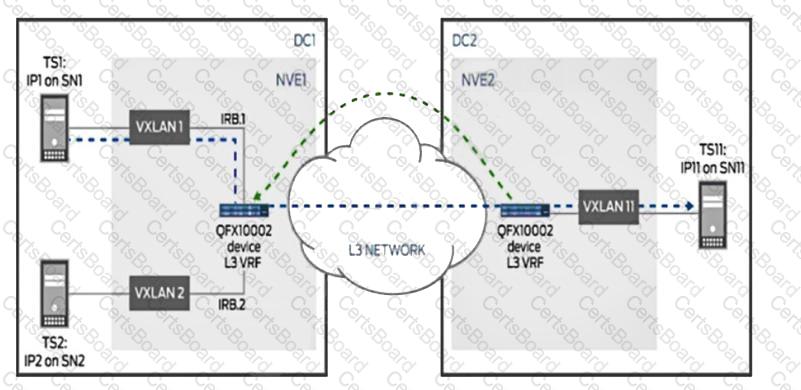

In the given scenario, the connection between DC1 and DC2 is routed through a Layer 3 network. This indicates that the devices connecting the two data centers must be capable of performing Layer 3 routing to ensure that traffic can be properly forwarded across the network. Additionally, the use of VXLAN suggests that Integrated Routing and Bridging (IRB) functionality is required to enable communication between Layer 2 networks over the Layer 3 infrastructure.

The border devices (QFX10002) must handle Layer 3 routing to manage IP traffic between the data centers.

IRB functionality is necessary for routing between VLANs, allowing VXLAN to carry Layer 2 traffic across the Layer 3 network.

References:

The diagrams indicate the use of VXLAN for Layer 2 extension over a Layer 3 network.

The need for IRB is suggested by the presence of routed interfaces (IRB1 and IRB2) in the data center diagrams.

The "Tech Ops Managed Router Juniper Install Guide" provides insights into the Layer 3 routing capabilities and configurations necessary for such setups​​​​.

When troubleshooting an EVPN-VXLAN IP fabric loop, the following steps are crucial:

Issue the show route table bgp.evpn.0 command on Leaf2 and verify that Type 4 routes are present: Type 4 routes indicate EVPN Ethernet Segment routes, which are essential for detecting and mitigating loops.

Issue the show route table bgp.evpn.0 command on Leaf2 and verify that Type 3 routes are present: Type 3 routes (Inclusive Multicast Ethernet Tag routes) ensure that multicast and broadcast traffic is properly handled, helping identify and troubleshoot loop issues.

References:

The commands for verifying BGP EVPN routes are standard in troubleshooting EVPN-VXLAN fabrics.

Documentation from "Useful Juniper Commands.txt" and "Juniper Commands.pdf" which provide command references for verifying EVPN route types​​​​.
