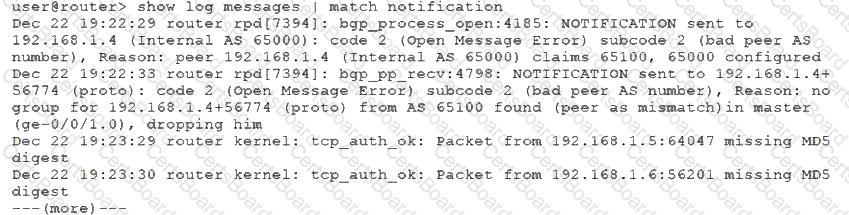

Step 1: Check the error messages in the log.

The log messages indicate:

vbnet

Copy code

Dec 22 19:22:29 router rpd[7394]: bgp_process_open:4185: NOTIFICATION sent to 192.168.1.4 (Internal AS 65000): code 2 (Open Message Error) subcode 2 (bad peer AS number), Reason: peer 192.168.1.4 (Internal AS 65000) claims 65100, 65000 configured

Dec 22 19:22:33 router rpd[7394]: bgp_pp_recv:4788: NOTIFICATION sent to 192.168.1.4+56714 (proto): code 2 (Open Message Error) subcode 2 (bad peer AS number), Reason: no group for 192.168.1.4+56714 (proto) from AS 65100 found (peer as mismatch) in master

Step 2: Interpret the messages.

The first message indicates that a BGP NOTIFICATION was sent to 192.168.1.4 due to an "Open Message Error" with a "bad peer AS number" because peer 192.168.1.4 claims AS 65100, but 65000 is configured.

The second message reiterates that the peer AS number 65100 does not match the configured AS 65000, causing a mismatch.

Step 3: Understand the MD5 key error.

sql

Copy code

Dec 22 19:23:29 router kernel: tcp_auth_ok: Packet from 192.168.1.5:64047 missing MD5 digest

Dec 22 19:23:30 router kernel: tcp_auth_ok: Packet from 192.168.1.6:56201 missing MD5 digest

These lines indicate that packets from 192.168.1.5 and 192.168.1.6 are missing the MD5 digest, suggesting a potential MD5 key misconfiguration.

Step 4: Validate the answers.

Option B: The 192.168.1.5 peer has a misconfigured MD5 key. This is correct because the logs show that packets from 192.168.1.5 are missing the MD5 digest.

Option D: The 192.168.1.4 peer has a misconfigured autonomous system number. This is correct because the logs indicate that 192.168.1.4 claims AS 65100, while the router is configured for AS 65000.

References:

Document on useful Juniper commands for troubleshooting BGP and understanding log messages​​​​.

Commands for checking BGP logs: show log messages | match notification, show bgp summary, show configuration protocols bgp​​​​.

Step 1: Identify the problem.

Devices do not support VPN NLRI, and you must prevent these devices from receiving BGP VPN routes.

Step 2: Analyze the possible solutions.

Option A: Configure an import policy on the remote peer to reject the routes when they are received.

This approach would require configuration on the remote peer, which might not always be practical or possible.

Option B: Configure an export policy on the local BGP peer to reject the VPN routes being sent to the remote peer.

This ensures the local BGP peer does not send the VPN routes to the remote peer, directly addressing the problem.

Option C: Configure a route reflector for the VPN NLRI.

This does not solve the issue of preventing the advertisement of VPN routes to non-supporting peers.

Option D: Configure the apply-vpn-export feature on the local BGP peer.

This feature ensures that the VPN export policies are applied, preventing the advertisement of VPN routes to peers that do not support VPN NLRI.

Step 3: Verify the configurations.

Option B and Option D directly address the requirement without needing configurations on the remote peer.

References:

Juniper BGP configuration guide on export policies​​​​​​.

Commands for applying export policies:

shell

Copy code

set policy-options policy-statement term from protocol bgp-vpn

set policy-options policy-statement term then reject

set protocols bgp group export

set protocols bgp apply-vpn-export

The address range 232.0.0.0/8 is reserved for Source-Specific Multicast (SSM). This range is specifically allocated for SSM where data is sent from a specific source to the receivers.

References:

Source-Specific Multicast (SSM) Overview, RFC 4607

Reviewing MST Configuration:

The configuration shown in the exhibit indicates MST (Multiple Spanning Tree) configuration for DS-1 and DS-2 switches.

For DS-1:

plaintext

Copy code

mstp {

configuration-name Region-1;

revision-level 1;

interface ge-0/0/8;

interface ge-0/0/9;

interface ge-0/0/10;

interface ge-0/0/12;

msti 1 {

bridge-priority 4k;

vlan 10-19;

}

msti 2 {

bridge-priority 8k;

vlan 20-29;

}

}

For DS-2:

plaintext

Copy code

mstp {

configuration-name Region-1;

revision-level 1;

interface ge-0/0/8;

interface ge-0/0/9;

interface ge-0/0/10;

interface ge-0/0/12;

msti 1 {

bridge-priority 8k;

vlan 10-19;

}

}

Understanding Bridge Priority:

In MSTP, the switch with the lowest bridge priority becomes the root bridge for the respective MST instance.

For MSTI 1:

DS-1 bridge-priority is 4k (4096)

DS-2 bridge-priority is 8k (8192)

Thus, DS-1 will be the root bridge for MSTI 1.

For MSTI 2:

DS-1 bridge-priority is 8k (8192)

DS-2 does not participate in MSTI 2.

Thus, DS-1 will be the root bridge for MSTI 2.

Analyzing VLAN Assignments:

DS-1 MSTI 1: VLANs 10-19, priority 4k

DS-1 MSTI 2: VLANs 20-29, priority 8k

DS-2 MSTI 1: VLANs 10-19, priority 8k

DS-2 does not have MSTI 2 configuration.

Conclusion:

DS-1 is the root bridge for MSTI 1 (C)

DS-2 does not participate in MSTI 2 (eliminates A)

DS-1 is the root bridge for MSTI 2 (D)

DS-2 is not the root bridge for MSTI 1 (eliminates B)

References:

Configuration snippets

Understanding of MSTP priorities and root bridge election

Step 1: Identify the requirements for interface-level authentication.

Ensure only corporate devices can connect using their MAC addresses.

Centralized server handles authentication.

Step 2: Evaluate authentication methods.

MAC RADIUS: Uses MAC addresses for authentication via a centralized RADIUS server.

Captive Portal: Typically used for guest access, not suitable for restricting to corporate devices.

802.1X with single-secure supplicant mode: Ensures only one device per port, but requires certificates or credentials, not just MAC addresses.

802.1X with multiple supplicant mode: Allows multiple devices per port, still requires certificates or credentials.

Step 3: Select the appropriate method.

MAC RADIUS: Satisfies the requirement of using MAC addresses for device authentication via a centralized server.

References:

Juniper authentication configuration and best practices​​​​.

Commands for configuring MAC RADIUS: set protocols dot1x authenticator interface mac-radius, set access radius-server ​​​​.

 Captive Portal Functionality:

Captive portals are used to enforce user authentication by redirecting web browser requests to a login page until authentication is successful.

 Operation:

When a user connects to the network, their HTTP requests are intercepted and redirected to the captive portal login page. This process continues until the user provides valid credentials.

 Implementation:

Juniper Configuration:

shell

Copy code

set security authentication-web redirect-url "http:// "

set security zones security-zone interfaces host-inbound-traffic system-services http

set security zones security-zone interfaces host-inbound-traffic system-services https

set access profile captive-portal

This configuration ensures that all HTTP/HTTPS traffic is redirected to the specified captive portal for authentication.

 References:

Detailed configuration and operation are documented in "Tech Ops Managed Router Juniper Install Guide" and related documents​​​​.

Dynamic VLAN assignment using 802.1X authentication relies on vendor-specific attributes (VSAs) to assign VLANs dynamically based on the authentication results. The modes that support using VSAs for dynamic VLAN assignment are:

Single-Secure Supplicant Mode: This mode supports a single secure client on a port and can use VSAs to dynamically assign VLANs based on the authentication result.

Multiple Supplicant Mode: This mode supports multiple clients on a single port, each with its own authentication session, and can use VSAs to dynamically assign VLANs.

References:

The Juniper documentation and configuration guides discuss the capabilities of these modes in supporting dynamic VLAN assignment through VSAs. Specific configuration examples and guidelines can be found in the documents:

Useful Juniper Commands.txt

Tech Ops Managed Router Juniper Install Guide

# Example of enabling single-secure supplicant mode

set protocols dot1x authenticator interface ge-0/0/1.0 supplicant multiple

# Example of enabling multiple supplicant mode

set protocols dot1x authenticator interface ge-0/0/1.0 supplicant multiple

Enabling LLDP-MED:

LLDP-MED (Link Layer Discovery Protocol - Media Endpoint Discovery) is an extension of LLDP specifically for VoIP devices.

It allows network devices to advertise and receive configuration information, such as VLAN IDs, from the network switch.

Voice VLAN Feature:

The voice VLAN feature on switches is designed to simplify the deployment of VoIP by automatically placing voice traffic on a designated VLAN.

Configuring the appropriate access interfaces and VLAN ID for voice traffic ensures that voice packets are prioritized and properly segmented from other types of traffic.

Configuration Steps:

Enable LLDP-MED on the appropriate access interfaces:

plaintext

Copy code

set protocols lldp-med interface ge-0/0/0

Enable the voice VLAN feature and specify the VLAN ID:

plaintext

Copy code

set ethernet-switching-options voip interface ge-0/0/0 vlan voice

set ethernet-switching-options voip interface ge-0/0/0 forwarding-class assured-forwarding

References:

Juniper documentation on LLDP-MED

Juniper EX Series switch configuration guide for voice VLAN
