Which of the following are true when ports are configured with the IEEE 802.3ah Loopback Control feature? (Choose 3)
What is the default Alcatel-Lucent 7750 SR TTL of a BGP advertisement between confederation members?

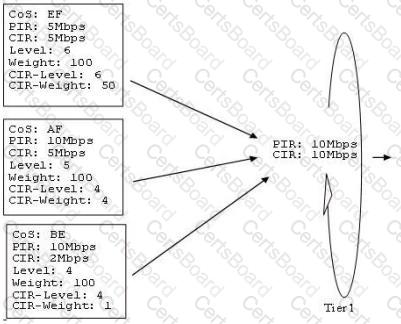

Click the exhibit button below. Given the scheduler-policy (below), how much bandwidth can the best-effort traffic receive (PIR and CIR) when the ingress rate of each queue is 10Mbps?
Click the exhibit button below.

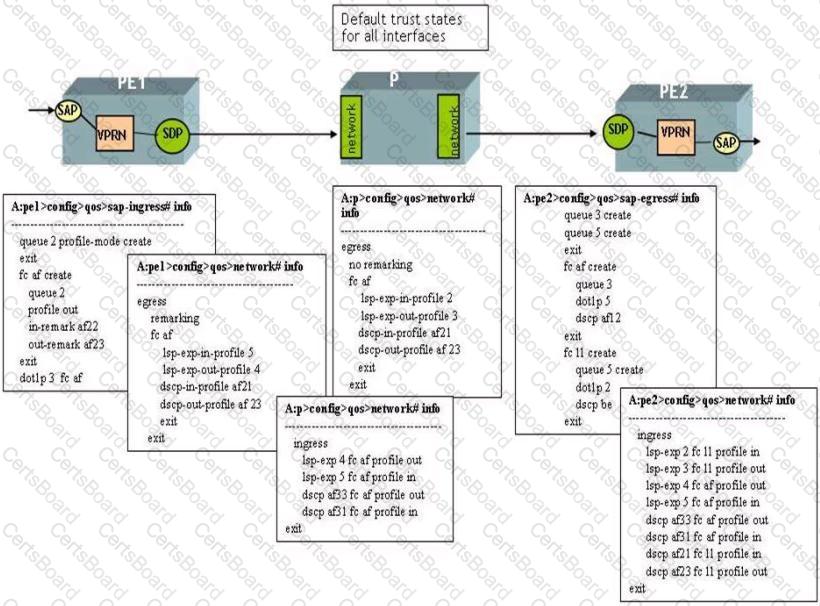

All interfaces are using their default trust states and MPLS is used as the transport tunnel. The SAP-ingress, SAP-egress, and network QoS policies have been configured as shown below. Assume that the default network-queue policy is used on each router.
At router PE 1, customer traffic is arriving marked with DSCP BE and tagged with a dot1p value of 3.
Based on the configuration shown below for the VPRN service, what will be the DSCP and dot1p marking for the packet egressing at router PE 2? (Choose two)
In the context of hierarchical scheduling, a scheduler is configured with a CIR weight of 0. Which of the following statements is TRUE?
Click the exhibit.

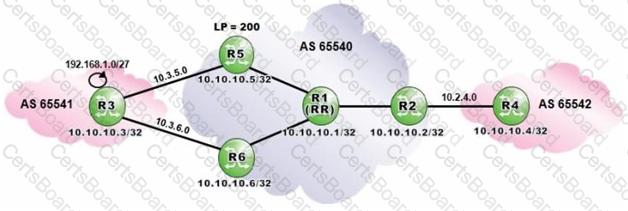

Router R1 is a route reflector with clients R2, R5 and R6. Prefixes advertised by router R5 have a local preference of 200. Router R3 advertises the prefix 192.168.1.0/27 to routers R5 and R6.

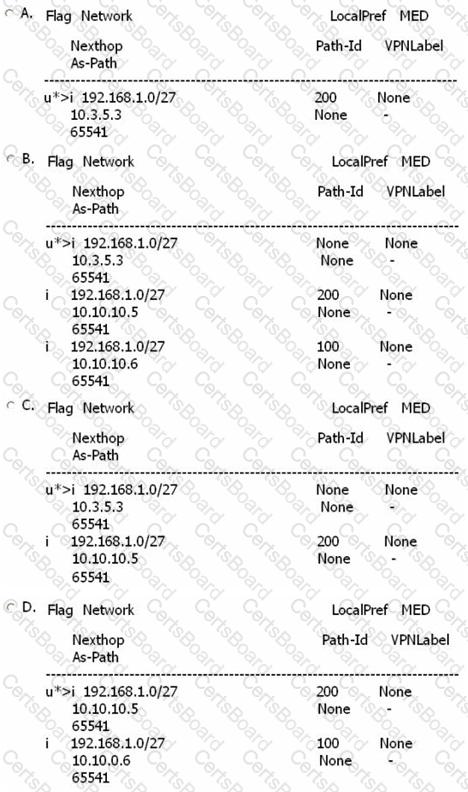

Assuming that none of the routers in AS 65540 is configured with "advertise-external", what is the expected output of "show router bgp routes" on router R5?
Which of the following about the configuration of BGP Site of Origin (SoO) is TRUE?
Click the exhibit.

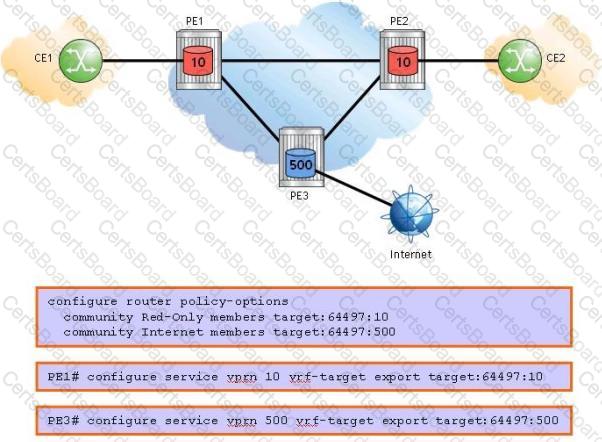

Internet access is provided to the Red VPRN (ID 10) via an Internet VRF (ID 500). For this configuration, which communities must be imported on the Red and Internet VRFs?
