You are providing cloud-based virtual desktops to businesses from your data center. Each business needs to be completely segmented from each other; however, to keep costs down, you decide to use a single DHCP and DNS server with the least amount of configuration.
Which three features must be configured in the Brocade VCS Fabric? (Choose three.)
Referring to the exhibit, which statement is correct?
Exhibit:
VDX8770_3-131# sh port-c 123
LACP Aggregator: Po 123
Aggregator type: Standard
Ignore-split is enabled
Admin Key: 0123 - Oper Key 0123
Partner System ID - 0x0000,00-00-00-00-00-00
Partner Oper Key 0000
Member ports on rbridge-id 131:
Link: Te 131/2/16 (0x8318880086) sync: 0
VDX8770_3-131# show running-config interface Port-channel 123
interface Port-channel 123
vlag ignore-split
switchport
switchport mode trunk
switchport trunk allowed vlan add 10,30
switchport trunk tag native-vlan
spanning-tree shutdown
no shutdown
Exhibit:

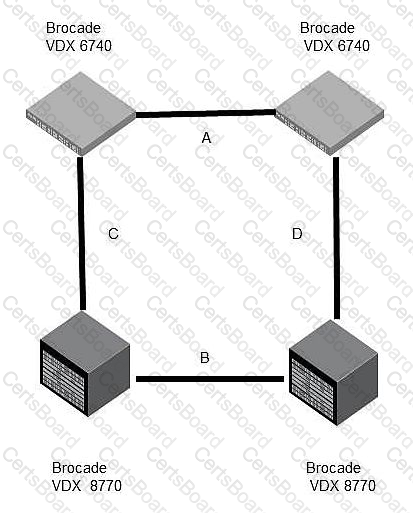

Your customer wants to take advantage of Brocade trunking to optimize the data backups over their Brocade VCS Fabric. The fabric will consist of four devices as shown in the exhibit.
The chassis are using the LC48X10G line cards.
Which two statements are correct? (Choose two.)
You connected interface 2 on a Brocade VDX 6740 to your LAN, but no traffic is traversing the link.
SW1# show interface tengigabitethernet 1/0/2
TenGigabitEthernet 1/0/2 is up, line protocol is down (link protocol down)
Hardware is Ethernet, address is 0027.f8b2.d728
Current address is 0027.f8b2.d728
Pluggable media present
Receive Statistics:
0 packets, 0 bytes
Unicasts: 0, Multicasts: 0, Broadcasts: 0
64-byte pkts: 0, Over 64-byte pkts: 0, Over 127-byte pkts: 0
Over 255-byte pkts: 0, Over 511-byte pkts: 0, Over 1023-byte pkts: 0
Over 1518-byte pkts(Jumbo): 0
Runts: 0, Jabbers: 0, CRC: 0, Overruns: 0
Errors: 0, Discards: 0
Transmit Statistics:
0 packets, 0 bytes
Unicasts: 0, Multicasts: 0, Broadcasts: 0
Underruns: 0
Errors: 0, Discards: 0
Referring to the exhibit, what is happening?
Which vendor's Ethernet fabric solution will directly join a Brocade VCS Fabric?
A customer would like to use Brocade VDX switches for connectivity to servers running at 100 Mbps and 1000 Mbps. The customer would also like the option to upgrade the switch ports to 10 Gbps for additional bandwidth in the near future.
Which Brocade VDX switch should you use?

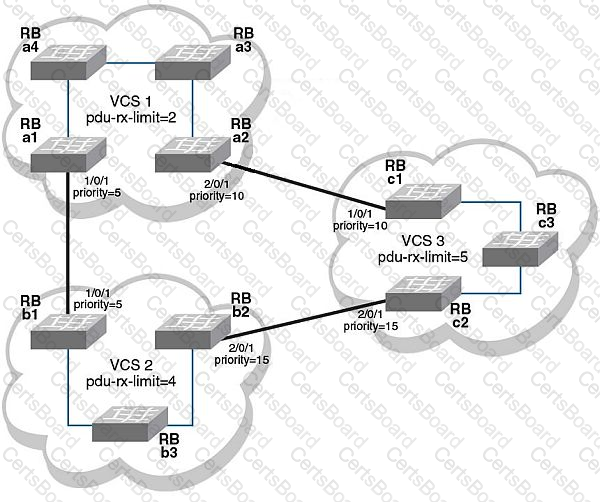

You have three Brocade VCS Fabrics linked together and have enabled ELD.
Referring to the exhibit, which link would be blocked?
Referring to the exhibit, you connected your Brocade VDX device to an Ethernet switch running PVST+. The interfaces are up but spanning tree is not functioning for VLAN 10.
VDX8770_3-131#sh run prot
protocol spanning-tree rpvst
!
VDX8770_3-131# sh run int vlan 10
interface Vlan 10
!
VDX8770_3-131#sh run int te 131/2/16
interface TenGigabitEthernet 131/2/16
fabric isl enable
fabric trunk enable
switchport
switchport mode trunk
switchport trunk allowed vlan add 10
switchport trunk tag native-vlan
no spanning-tree shutdown
no shutdown
What is the problem?
Which three attributes are distributed by the Ethernet Name Server (eNS) within a Brocade VCS Fabric? (Choose three.)
