How would a modeler refine a use case textual narrative?

Options:

A.

provide a detailed definition of the use case using a behavioral diagram

B.

specify all of the triggers preconditions, and post conditions for the use case

C.

specify all extension points for extend use cases and specify all secondary actors

D.

provide a complete textual description of the main flow and alternative/exceptional flows for the use case

Buy Now
Question # 5

Choose the correct answer.

A system engineer specializing in rigid body dynamics wants to model the laws of motion (LOM) so that they may be reused to analyze different types of systems. The LOM consist of the mathematical relations R1 and R2. shown here.

(R1)s=ut +(1/2)at2

(R2) v = u + at

How should the system engineer represent and relate LOM. R1, and R2 in SysML?

Options:

A.

Create a block for each of LOM. R1 and R? Then create part properties in LOM that are typed by R1 and R?

B.

Create an activity for each of LOM. R1, and R2. Then, create actions in LOM that are typed by R1 and R2.

C.

Create a constraint block for each of LOM. R1. and R2 Then, create part properties in LOM that are typed by R1 and R2.

D.

Create a constraint block for each of LOM. R1, and R2- Then, create constraint properties m LOM that are typed by R1 and R2.

Buy Now
Question # 6

Choose the correct answer.

Assume the following state machine is In the T-1 State when ev Z occurs:

Subsequently ev Voccurs.

Which sequence of actions will be executed?

Options:

A.

action 2

B.

action 2 action 3

C.

action 2 action 4

D.

action 3

E.

action 4

F.

action 5 action 2 action 3

G.

action 5 action 2 action 4

Buy Now
Question # 7

Choose the correct answer.

Given the following statement machine, and assuming that it starts from initialization:

What is the shortest event sequence that will place this state machine in its final state?

Options:

A.

a, b, x

B.

c, a, x

C.

c, a, x, x

D.

a, b. c, x

E.

a, b, c, a, x, x

Buy Now
Question # 8

Choose the correct answer.

Given the following diagram:

How does state machine Example behave after receipt of event M1 with x equal to zero?

Options:

A.

It remains in State 1.

B.

it arbitrarily enters either State 2 or State 3.

C.

It terminates

D.

Its behavior is not defined.

Buy Now
Question # 9

Choose the correct answer.

Given the following diagram:

Which message ordering is valid?

Options:

A.

M1, M2. M3, M4

B.

M3. M1. M2, M4

C.

M3, M4. M1, M2

D.

None of these orderings is valid.

Buy Now
Question # 10

Choose the correct answer.

Given the following block structure model:

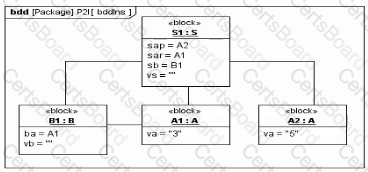

What is the value of S1.vs when the parametric models are executed for the following instance?

Options:

A.

11

B.

14

C.

13

D.

There is no value - the instance model is invalid

Buy Now
Question # 11

Choose the correct answer.

Given the following diagram:

What Is the meaning of the consider fragment?

Options:

A.

It is a constraint that prevents adding a nested ignore fragment for any one of ml. m2 or m3.

B.

It ignores all messages other than ml m2 and m3 in the scenario being described by the interaction

C.

The meaning is undefined because the diagram is ill-formed in the absence of n>3. which must be considered.

D.

It allows the invocation of the operations corresponding to messages m 1. m? and m3 only when they appear in that order

Buy Now
Question # 12

Choose the correct answer

How can the containment relationship be used to relate requirements?

Options:

A.

Packages may represent specifications, which can be contained m other specifications

B.

Containment allows a requirement to be decomposed by containing sub-requirements. Packages can also contain requirements

C.

Requirements can contain packages, which in turn can contain other requirements. This is how hierarchical specifications can be represented in SysML

D.

Requirements cannot use containment. They cannot contain any other model elements.

Buy Now
Question # 13

Choose the correct answer

The following are behavioral requirements for an automobile electric window

(1) When the window button is moved into the up position and the window is not fully up the window shall begin to move up

(?) When the window button is moved into the down position and the window is not hilly down, the window shall begin to move down

(3) When the window button is released or the window reaches the fully up or fully down position, the window shall stop moving

(4) Requirements (1-3) apply when the ignition is on. However, turning the ignition off shall lake effect only after the window has stopped moving.

Which state machine diagram fragment describes the required behavior?

A)

B)

C)

D)

E)

Options:

A.

Option A

B.

Option B

C.

Option C

D.

Option D

E.

Option E

Buy Now
