MCPA-Level-1-Maintenance Exam Dumps - MuleSoft Certified Platform Architect Questions and Answers

Explanation

Correct Answer: Unit tests (Whitebox)

*****************************************

Explanation

Correct Answer: Approve the client application request for the chosen SLA tier

*****************************************

>> Only approving the client application request for the chosen SLA tier can be automated

>> Rest of the provided options are not valid

Explanation

Correct Answer: Convince the development team of the product API to adopt the API data model of the Order API such that integration logic of the Order API can work with one consistent internal data model

*****************************************

Key details to note from the given scenario:

>> Power relationship between Order API and Product API is customer/supplier

So, as per below rules of "Power Relationships", the caller (in this case Order API) would request for features to the called (Product API team) and the Product API team would need to accomodate those requests.

Explanation

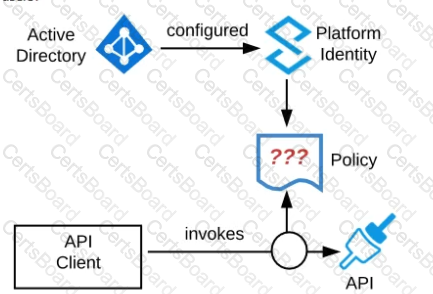

Correct Answer: Apply a basic authentication - LDAP policy; the internal Active Directory will be configured as the LDAP source for authenticating users.

*****************************************

>> IP Whitelisting does NOT fit for this purpose. Moreover, the users workstations may not necessarily have static IPs in the network.

>> OAuth 2.0 enforcement requires a client provider which isn't in the organizations system components.

>> It is not an effective approach to let every user create separate client credentials and configure those for their usage.

The effective way it to apply a basic authentication - LDAP policy and the internal Active Directory will be configured as the LDAP source for authenticating users.

Explanation

Correct Answer: Set a timeout of 100ms; that leaves 400ms for other two downstream APIs to complete

*****************************************

Key details to take from the given scenario:

>> Upstream API's designed SLA is 500ms (median). Lets ignore maximum SLA response times.

>> This API calls 3 downstream APIs sequentially and all these are of similar complexity.

>> The first downstream API is offering median SLA of 100ms, 80th percentile: 500ms; 95th percentile: 1000ms.

Based on the above details:

>> We can rule out the option which is suggesting to set 50ms timeout. Because, if the median SLA itself being offered is 100ms then most of the calls are going to timeout and time gets wasted in retried them and eventually gets exhausted with all retries. Even if some retries gets successful, the remaining time wont leave enough room for 2nd and 3rd downstream APIs to respond within time.

>> The option suggesting to NOT set a timeout as the invocation of this API is mandatory and so we must wait until it responds is silly. As not setting time out would go against the good implementation pattern and moreover if the first API is not responding within its offered median SLA 100ms then most probably it would either respond in 500ms (80th percentile) or 1000ms (95th percentile). In BOTH cases, getting a successful response from 1st downstream API does NO GOOD because already by this time the Upstream API SLA of 500 ms is breached. There is no time left to call 2nd and 3rd downstream APIs.

>> It is NOT true that no timeout is possible to meet the upstream APIs desired SLA.

As 1st downstream API is offering its median SLA of 100ms, it means MOST of the time we would get the responses within that time. So, setting a timeout of 100ms would be ideal for MOST calls as it leaves enough room of 400ms for remaining 2 downstream API calls.

Explanation

Correct Answer: 8082

*****************************************

>> 8091 and 8092 ports are to be used when keeping your HTTP and HTTPS app private to the LOCAL VPC respectively.

>> Above TWO ports are not for Shared AWS VPC/ Shared Worker Cloud.

>> 8081 is to be used when exposing your HTTP endpoint app to the internet through Shared LB

>> 8082 is to be used when exposing your HTTPS endpoint app to the internet through Shared LB

So, API invocations should be sent to port 8082 when calling this HTTPS based app.

References:

https://docs.mulesoft.com/runtime-manager/cloudhub-networking-guide

https://help.mulesoft.com/s/article/Configure-Cloudhub-Application-to-Send-a-HTTPS-Request-Directly-to-Another-Cloudhub-Application

https://help.mulesoft.com/s/question/0D52T00004mXXULSA4/multiple-http-listerners-on-cloudhub-one-with-port-9090

Explanation

Correct Answer: Anypoint Runtime Fabric

*****************************************

>> When a customer is already having an Azure environment, It is not at all an ideal approach to go with hybrid model having some Mule Runtimes hosted on Azure and some on MuleSoft. This is unnecessary and useless.

>> CloudHub is a Mulesoft-hosted Runtime plane and is on AWS. We cannot customize to point CloudHub to customer's Azure environment.

>> Anypoint Platform for Pivotal Cloud Foundry is specifically for infrastructure provided by Pivotal Cloud Foundry

>> Anypoint Runtime Fabric is right answer as it is a container service that automates the deployment and orchestration of Mule applications and API gateways. Runtime Fabric runs within a customer-managed infrastructure on AWS, Azure, virtual machines (VMs), and bare-metal servers.

-Some of the capabilities of Anypoint Runtime Fabric include:

-Isolation between applications by running a separate Mule runtime per application.

-Ability to run multiple versions of Mule runtime on the same set of resources.

-Scaling applications across multiple replicas.

-Automated application fail-over.

-Application management with Anypoint Runtime Manager.

Explanation

Correct Answer: IP whitelist

*****************************************

>> OAuth 2.0 access token and Client ID enforcement policies are VERY common to apply on Experience APIs as API consumers need to register and access the APIs using one of these mechanisms

>> JSON threat protection is also VERY common policy to apply on Experience APIs to prevent bad or suspicious payloads hitting the API implementations.

>> IP whitelisting policy is usually very common in Process and System APIs to only whitelist the IP range inside the local VPC. But also applied occassionally on some experience APIs where the End User/ API Consumers are FIXED.

>> When we know the API consumers upfront who are going to access certain Experience APIs, then we can request for static IPs from such consumers and whitelist them to prevent anyone else hitting the API.

However, the experience API given in the question/ scenario is intended to work with a consumer mobile phone or tablet application. Which means, there is no way we can know all possible IPs that are to be whitelisted as mobile phones and tablets can so many in number and any device in the city/state/country/globe.

So, It is very LEAST LIKELY to apply IP Whitelisting on such Experience APIs whose consumers are typically Mobile Phones or Tablets.

Explanation

Correct Answer: The remaining capacity allowed by the API implementation.

*****************************************

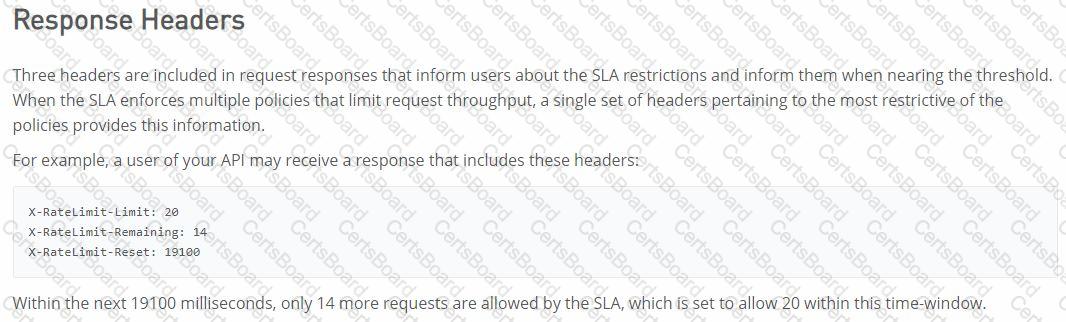

>> Reference: https://docs.mulesoft.com/api-manager/2.x/rate-limiting-and-throttling-sla-based-policies#response-headers

Explanation

Correct Answer: System Layer

The APIs used in an API-led approach to connectivity fall into three categories:

System APIs – these usually access the core systems of record and provide a means of insulating the user from the complexity or any changes to the underlying systems. Once built, many users, can access data without any need to learn the underlying systems and can reuse these APIs in multiple projects.

Process APIs – These APIs interact with and shape data within a single system or across systems (breaking down data silos) and are created here without a dependence on the source systems from which that data originates, as well as the target channels through which that data is delivered.

Experience APIs – Experience APIs are the means by which data can be reconfigured so that it is most easily consumed by its intended audience, all from a common data source, rather than setting up separate point-to-point integrations for each channel. An Experience API is usually created with API-first design principles where the API is designed for the specific user experience in mind.
