In the context of Ethernet VPN (EVPN) and the behavior described in the exhibit, it's essential to understand the different EVPN route types and their specific functionalities. Here, CE-2 is receiving unicast traffic on both of its multihomed links to PE-2 and PE-3, but broadcast traffic is received only on one of these links.

**Explanation of EVPN Route Types**:

1. **Type 1 (Ethernet Auto-Discovery Routes)**:

- These routes are used for auto-discovery of Ethernet segments and for advertising VLAN membership.

- They do not directly influence the behavior described in the question.

2. **Type 2 (MAC/IP Advertisement Routes)**:

- These routes are used to advertise MAC addresses and IP-to-MAC bindings within the EVPN.

- They handle unicast traffic forwarding and are crucial for populating the MAC address tables on the PE devices.

- While important, they do not explain the selective broadcast behavior.

3. **Type 3 (Inclusive Multicast Ethernet Tag Routes)**:

- These routes are used to build multicast distribution trees for delivering broadcast, unknown unicast, and multicast (BUM) traffic.

- They ensure that BUM traffic is sent only once per Ethernet segment, preventing duplicate frames from being sent to multihomed CEs.

- This aligns with the behavior described where CE-2 receives broadcast traffic on only one link to prevent duplication.

4. **Type 4 (Ethernet Segment Routes)**:

- These routes are used to advertise the presence of an Ethernet segment and are crucial for Designated Forwarder (DF) election processes in multihoming scenarios.

- While relevant to multihoming, they are not directly responsible for the selective broadcast behavior.

**Conclusion**:

The behavior described, where CE-2 receives broadcast traffic on only one of its multihomed links, is controlled by Type 3 routes. These routes are specifically designed to handle inclusive multicast and broadcast traffic efficiently in EVPN environments, ensuring that such traffic is not duplicated across multiple links to the same CE.

**References**:

- Juniper Networks EVPN Documentation: [EVPN Overview](https://www.juniper.net/documentation/en_US/junos/topics/concept/evpn-overview.html)

- RFC 7432, BGP MPLS-Based Ethernet VPN: [RFC 7432](https://tools.ietf.org/html/rfc7432) provides detailed descriptions of EVPN route types and their functions.

- Junos OS EVPN Configuration Guide: [Junos OS EVPN Configuration Guide](https://www.juniper.net/documentation/en_US/junos/topics/topic-map/evpn.html)

https://www.juniper.net/documentation/us/en/software/nce/feature-guide-virtual-private-lan-service/topics/task/vpls-ldp-signaling-solutions.html

https://www.juniper.net/documentation/us/en/software/junos/vpn-l2/topics/concept/vpns-configuring-vpls-routing-instances.html#id-11510150__id-11568648

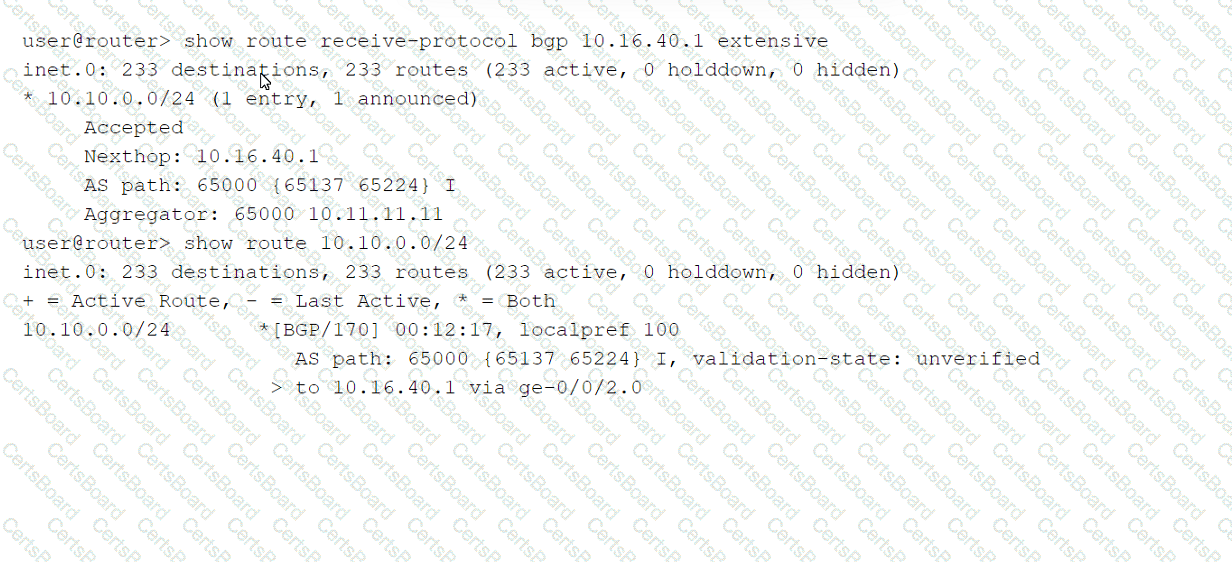

In the given exhibit, you are observing the BGP routing information for the prefix 10.10.0.0/24. The AS path for this prefix shows `65000 {65137 65224}`. To understand the issue, let's analyze each aspect of the information provided and the options given:

1. **AS Path Analysis**:

- The AS path attribute in BGP is a list of AS numbers that a route advertisement has traversed.

- In this case, the AS path `65000 {65137 65224}` indicates that the route to 10.10.0.0/24 has been advertised through AS 65000, which includes AS 65137 and AS 65224.

2. **Understanding AS Path Prepending**:

- AS path prepending is a technique used by AS administrators to artificially lengthen the AS path.

- By adding their own AS number multiple times into the AS path, they make a route less attractive to others.

- Here, AS 65000 is showing `65137` as part of its AS path, suggesting it might be prepending to manipulate routing decisions.

3. **Options Analysis**:

- **Option A**: "AS 65000 is pre-pending AS 65137 to route advertisements."

- This option suggests that AS 65000 is deliberately adding AS 65137 to the AS path. This matches the observed AS path, where AS 65000 has prepended `65137`.

- Therefore, this is the correct explanation.

- **Option B**: "The local AS is receiving two equal cost routes to 10.10.0.0/24."

- There is no evidence in the exhibit to support the presence of two equal-cost routes.

- **Option C**: "The local AS is in the process of withdrawing the route from AS 65137."

- Route withdrawal would not cause the AS path to include `65000 {65137 65224}`.

- **Option D**: "AS 65137 is advertising the 10.10.0.0/24 prefix."

- While AS 65137 is part of the path, it does not explain the presence of AS 65000 in the path, making this option incorrect.

**Conclusion**:

The AS path `65000 {65137 65224}` is indicative of AS 65000 prepending AS 65137. Therefore, the correct answer is:

**A. AS 65000 is pre-pending AS 65137 to route advertisements.**

**References**:

- Juniper Networks documentation on BGP AS path manipulation and prepending techniques.

- BGP Best Practices and Routing Policies: [Juniper Networks BGP Best Practices](https://www.juniper.net/documentation/en_US/junos/topics/concept/bgp-best-practices-routing-policies.html)

- RFC 4271, A Border Gateway Protocol 4 (BGP-4): [RFC 4271](https://tools.ietf.org/html/rfc4271) which describes the behavior and attributes of BGP, including AS path prepending.

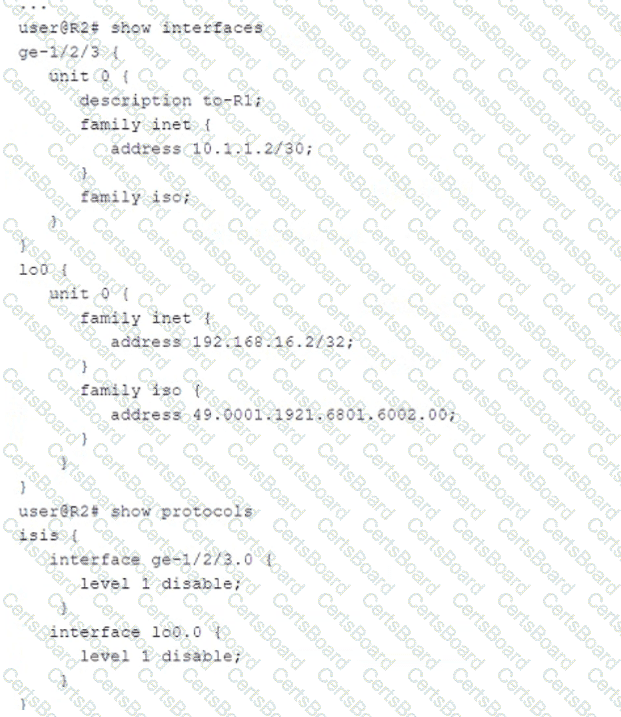

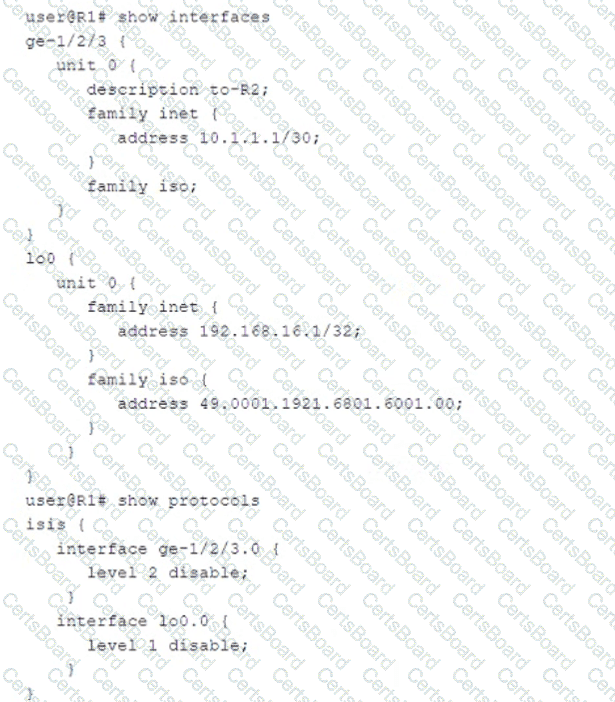

IS-IS is an interior gateway protocol that uses link-state routing to exchange routing information among routers within a single autonomous system. IS-IS uses two types of addresses to identify routers and areas: system ID and area address. The system ID is a unique identifier for each router in an IS-IS domain. The system ID is 6 octets long and can be derived from the MAC address or manually configured. The area address is a variable-length identifier for each area in an IS-IS domain. The area address can be 1 to 13 octets long and is composed of high-order octets of the address. An IS-IS instance may be assigned multiple area addresses, which are considered synonymous. Multiple synonymous area addresses are useful when merging or splitting areas in the domain1. In this question, we have a network based on IS-IS with four routers (R1_1, R1_2, R2_1, and R2_2) belonging to area 0001. The area address for area 0001 is 49.0001. The NSEL byte for area 0001 is the last octet of the address, which is 01. The NSEL byte stands for Network Service Access Point Selector (NSAP Selector) and indicates the type of service requested from the network layer2. Therefore, the correct statement in this scenario is that the NSEL byte for area 0001 is 01.

References: 1: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/iproute_isis/configuration/xe-16/irs-xe-16-book/irs-ovrvw-cf.html  2: https://www.juniper.net/documentation/us/en/software/junos/is-is/topics/concept/is-is-routing-overview.html

To summarize routes from the 203.0.113.128/25 IP block on R8 to AS 64500, you need to do the following:

Add the set routing-options static route 203.0.113.128/25 discard command. This creates a static route for the summary prefix and discards any traffic destined to it. This is necessary because BGP can only advertise routes that are present in the routing table.

Replace exact in the export policy with orlonger. This allows R8 to match and advertise any route that is equal or more specific than the summary prefix. The exact term only matches routes that are exactly equal to the summary prefix, which is not present in the routing table.

To allow Site 1 to access three VLANs that are located in Site 2 and Site 3, you need to configure three L2VPN routing instances on PE-1, one for each VLAN. Each L2VPN routing instance will have a different VLAN ID and a different VNI for VXLAN encapsulation. Each L2VPN routing instance will also have a different vrf-target export value to identify which VPN routes belong to which VLAN. This way, PE-1 can forward traffic from Site 1 to Site 2 and Site 3 based on the VLAN tags and VNIs.

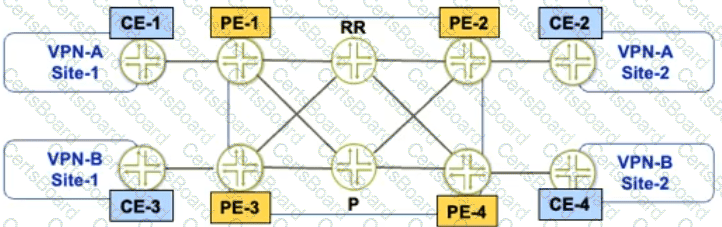

The route distinguisher (RD) is a BGP attribute that is used to create unique VPN IPv4 prefixes for each VPN in an MPLS network. The RD is a 64-bit value that consists of two parts: an administrator field and an assigned number field. The administrator field can be an AS number or an IP address, and the assigned number field can be any arbitrary value chosen by the administrator. The RD is prepended to the IPv4 prefix to create a VPN IPv4 prefix that can be advertised across the MPLS network without causing any overlap or conflict with other VPNs. In this question, we have two PE routers (PE-1 and PE-2) that are connected to two CE devices (CE-1 and CE-2) respectively. PE-1 and PE-2 are configured with VRFs named Customer-A and Customer-B respectively.

Type 1: When Type value is 1, the Administrator field is 4-bytes and Assigned Number field is 2-bytes. The Administrator field should be set to the IP address (public IP addresses should be used). The Assigned Number field contains a number from a numbering space that is administered by the enterprise to which the IP address has been assigned by the appropriate authority.

OSPF is an interior gateway protocol that uses link-state routing to exchange routing information among routers within a single autonomous system. OSPF prevents routing loops in multi-area networks by using two methods: area hierarchy and SPF algorithm. Area hierarchy is the concept of dividing a large OSPF network into smaller areas that are connected to a backbone area (area 0). This reduces the amount of routing information that each router has to store and process, and also limits the scope of link-state updates within each area. All areas are required to connect to area 0 either directly or through virtual links2. SPF algorithm is the method that OSPF uses to calculate the shortest path to each destination in the network based on link-state information. The SPF algorithm runs on each router and builds a shortest-path tree that represents the topology of the network from the router’s perspective. The SPF algorithm prunes looped paths within an area by choosing only one best path for each destination3.

References: 2: https://www.juniper.net/documentation/us/en/software/junos/ospf/topics/concept/ospf-area-overview.html  3: https://www.juniper.net/documentation/us/en/software/junos/ospf/topics/concept/ospf-spf-algorithm-overview.html
