ClearPass Access licenses are required for each unique endpoint that authenticates to ClearPass using any supported protocol, such as 802.1X, MAC authentication, web authentication, or VPN authentication1. ClearPass Onboard licenses are required for each unique endpoint that is provisioned with a certificate using the ClearPass Onboard service2. In this scenario, the customer has 900 employees and up to 30 guests a day, which means there are at most 930 users who need to authenticate to the network. Assuming each user has about two or three devices, the maximum number of devices that need Access licenses is 930 x 3 = 2790, which can be rounded up to 3000. The customer also wants to use certificates to authenticate user devices, which means they need Onboard licenses as well. However, the customer only issues laptops to the employees, which means only 900 devices need Onboard licenses. Therefore, the architect should include 3000 Access licenses and 1000 Onboard licenses in the proposal. References:

• 1: ClearPass Licensing Guide - Aruba
• 2: ClearPass Onboard Data Sheet - Aruba

Clustering is a feature that allows multiple Aruba MCs to work together as a single logical entity to provide high availability, scalability, and mobility for wireless clients12. One of the main benefits of clustering is that it provides wireless client load balancing and seamless failover for client sessions. This means that:

• Wireless clients are distributed evenly among the cluster members based on the available resources and the configured load balancing algorithm12. This helps to optimize the network performance and avoid congestion or bottlenecks.
• Wireless clients remain connected to the same MC, called the Active AP Anchor Controller (A-AAC), throughout their roaming area within the cluster, regardless of which AP they are associated with12. This ensures that the clients retain their IP address, subnet, and session information, and do not experience any disruption or delay in their connectivity or applications.
• Wireless clients can seamlessly fail over to another MC, called the Standby AP Anchor Controller (S-AAC), in case of a failure or maintenance of their A-AAC12. The S-AAC takes over the client sessions and state information from the A-AAC without requiring any re-authentication or re-association from the clients. This minimizes the impact of the failure and provides high availability and resiliency for the wireless services.

Therefore, by explaining these benefits, the architect can demonstrate how clustering can meet the customer’s high availability requirements for wireless services.

References:

• 1: https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/cluster/clus-over.htm
• 2: https://www.arubanetworks.com/techdocs/ArubaOS_85_Web_Help/Content/arubaos-solutions/cluster/clus-over.htm

whether the MC needs to support advanced 8.x features. This is because the Aruba 7000 Series MCs are based on the older hardware platform and can only run up to ArubaOS 6.5.x, while the Aruba 7200 Series MCs are based on the newer hardware platform and can run ArubaOS 8.x and above. ArubaOS 8.x introduces many advanced features, such as clustering, MultiZone, AirMatch, and dynamic segmentation, that are not supported by the Aruba 7000 Series MCs. Therefore, if the architect needs to design a solution that leverages these features, the Aruba 7200 Series MCs are the better choice.

Option A is incorrect because the number of wireless devices that the MC needs to support is not a key criteria to choose between the Aruba 7000 Series or 7200 Series MCs.Both series can support a similar number of devices, depending on the model and license.

Option B is incorrect because whether the MC needs to terminate VPN tunnels is not a key criteria to choose between the Aruba 7000 Series or 7200 Series MCs. Both series can terminate VPN tunnels, such as IPSec, GRE, and RAP, depending on the model and license.

Option C is incorrect because the need to deploy controllers in a cluster is not a key criteria to choose between the Aruba 7000 Series or 7200 Series MCs. Both series can participate in a cluster, as long as they run the same ArubaOS version and have the same license.

References: The information can be referenced from the official HPE documents and learning materials available on HPE Press and Aruba Networks. Specifically, it aligns with the objectives outlined in Chapter 6: Wireless Network Design, where the MC selection and ArubaOS 8.x features are discussed. Designing Aruba Solutions Official Certification Study Guide Aruba Mobility Controller Data Sheet ArubaOS 8.7 User Guide

The Aruba 7210 Mobility Controller is designed to support up to 512 APs and 16,384 simultaneous users. In contrast, the 7205 Mobility Controller supports up to 256 APs and 8,192 simultaneous users. Therefore, for a very high density (VHD) design with 128 APs supporting 12,800 devices, the 7210 controllers would be a better fit due to their higher capacity for APs and simultaneous users.

References:

• Designing Aruba Solutions, Rev. 20.11, Module 4: Aruba Mobility Controller Design, page 4-16
• 7200 Series Controller Data Sheet, page 1

 To ensure that wireless voice traffic is properly prioritized for Microsoft Skype for Business, the architect should set up firewall policies and SDN to mark voice on the MCs or MM. Firewall policies are used to classify and prioritize traffic based on the application, user role, device type, and location. SDN is used to integrate with the Skype for Business SDN API, which provides real-time information about voice and video sessions, such as source and destination IP addresses, ports, codecs, and quality metrics. By using firewall policies and SDN, the MCs or MM can dynamically mark voice traffic with the appropriate DSCP values and queue them in the highest priority queue on the wireless and wired network12.

The other options are not sufficient or relevant for ensuring wireless voice traffic prioritization for Skype for Business. Broadcast suppression combined with AirGroup is used to reduce the network overhead and improve the user experience for wireless devices that use multicast or broadcast protocols, such as Apple Bonjour or Microsoft UPnP3. Airtime Fairness set to fair-access is used to balance the airtime usage among clients with different capabilities and data rates, such as 802.11ac and 802.11n4. Voice-aware Layer 3 roaming is used to enable seamless handoff of voice sessions across different subnets without dropping the call5. While these features may enhance the overall wireless performance and reliability, they do not directly prioritize voice traffic for Skype for Business.

References:

• Aruba Validated Reference Design: 802.11ac Networks
• Aruba Validated Reference Design: Skype for Business
• Aruba Validated Reference Design: AirGroup
• Aruba Validated Reference Design: Adaptive Radio Management
• Aruba Validated Reference Design: Voice over Wireless LAN

A wide sector directional antenna is a type of antenna that radiates or receives radio waves in a sector-shaped pattern, covering a wide angle of a circle. The width of the sector is determined by the horizontal beamwidth (H-plane) of the antenna, while the height of the sector is determined by the vertical beamwidth (E-plane) of the antenna12. A wide sector directional antenna is usually used to provide regional coverage for wireless networks, such as Wireless Internet Service Providers (WISP) or similar applications2.

According to the antenna specifications given, Antenna 3 has the widest horizontal beamwidth of 100 degrees, which means it can cover a large sector of a circle. Antenna 4 has a narrower horizontal beamwidth of 60 degrees, which means it can cover a smaller sector of a circle. Antenna 1 and Antenna 2 have a horizontal beamwidth of 360 degrees, which means they are omnidirectional antennas, not directional antennas. Therefore, Antenna 3 is the best choice for the plan that specifies wide sector directional antennas.

References:

• 1: https://en.wikipedia.org/wiki/Sector_antenna
• 2: https://lcantennas.com/directional-antennas/

The switch needs to support PoE+ for this deployment. PoE+ stands for Power over Ethernet Plus, and it is a technology that allows the switch to provide both data and power to the connected devices over a single Ethernet cable. This eliminates the need for separate power sources or adapters for the devices, and simplifies the installation and management of the network. PoE+ can provide up to 30 watts of power per port,which is sufficient for the Aruba 320 Series APs, which have a maximum power consumption of 20 watts. PoE+ also supports 1 GbE connectivity, which meets the customer’s requirement.

The other options are not relevant for this deployment:

• Option B is incorrect because LACP is not a feature that the switch needs to support for this deployment. LACP stands for Link Aggregation Control Protocol, and it is a protocol that allows multiple physical links to be combined into a single logical link, providing higher bandwidth and redundancy. However, the architect plans to connect each AP with one Ethernet port to the switch, so there is no need for link aggregation in this scenario.
• Option C is incorrect because port channel is not a feature that the switch needs to support for this deployment. Port channel is another term for link aggregation, which is not required for this scenario, as explained above.
• Option D is incorrect because Smart Rate is not a feature that the switch needs to support for this deployment. Smart Rate is a technology that allows the switch to provide multi-gigabit Ethernet speeds (up to 10 GbE) and PoE+ to the connected devices, depending on the cable type and length. However, the customer only wants to support at least 1 GbE connectivity, which can be achieved with PoE+ and CAT6 cable, without the need for Smart Rate.

References:

• Aruba 320 Series Access Points Data Sheet)
• ArubaOS-Switch and ArubaOS-CX Transceiver Guide)
• Aruba Certified Design Professional Official Certification Study Guide (HPE6-A47))

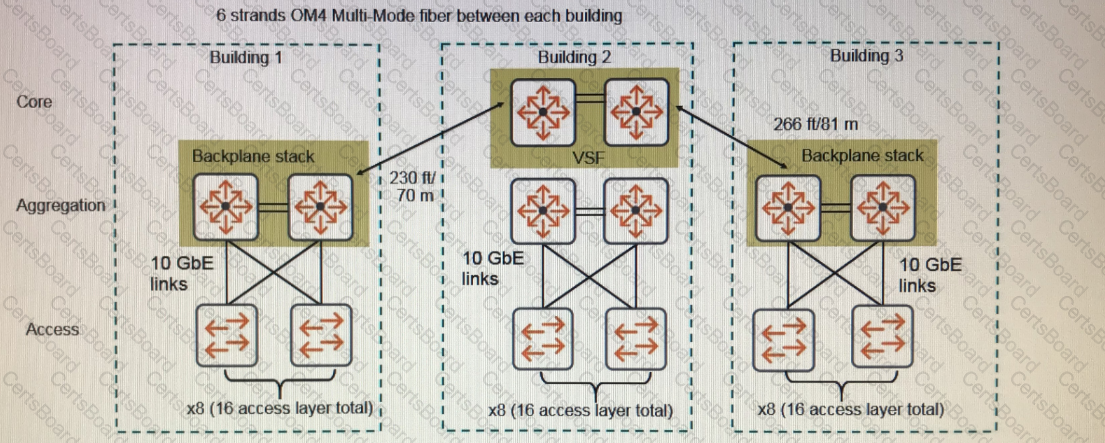

it meets the customer’s requirements for wired network upgrade. By combining the switches in each Building 2 closet as a Virtual Switching Framework (VSF) fabric, the architect can reduce the number of logical devices within the network, simplifying management and reducing complexity, aligning with the goal of flattening architecture. Establishing two 10 GbE connections to the core per fabric ensures redundancy and resilience, maintaining connectivity even if one link fails, without necessitating additional cabling. This also provides sufficient bandwidth and scalability for the network traffic.

The other options are incorrect because:

• A. Using two additional 2930F switches to act as an aggregation layer for Building 2 adds another layer of devices and complexity to the network, contradicting the goal of flattening architecture. It also requires additional cabling and ports to connect the switches to the core and the access layer.
• B. Connecting each Building 2 switch directly to the core on a single fiber strand through the use of SFP±SR transceivers does not provide redundancy and resilience, as one link failure would disconnect the switch from the core. It also limits the bandwidth and scalability of the network, as each switch would have only one 10 GbE connection to the core.
• D. Extending additional fiber between the buildings so that each Building 2 switch can have a direct 10 GbE connection to the core requires recabling, which the customer wants to avoid. It also increases the cost and complexity of the network, as more fiber strands and ports would be needed.

References:

• Aruba 2930M Switch Series - Data sheet)
• Aruba Validated Reference Design: Campus Wired LAN - Chapter 3)
• ArubaOS-Switch Virtual Switching Framework - Configuration guide)

The transceivers that the architect should recommend for each pair of switches are two QSPF+ MPO. This option would provide 40 Gbps bandwidth per link, which is enough to meet the customer requirement of 80 Gbps for the link aggregation. The QSPF+ MPO transceivers use a single multi-fiber connector that can support up to 12 fibers, which is compatible with the customer’s existing OM4 multi-mode fiber infrastructure. The QSPF+ MPO transceivers also support distances up to 100 meters, which is sufficient for the customer’s inter-building connections.

The other options are not optimal for the customer requirement because they either provide insufficient bandwidth or require additional fiber strands. Two QSPF+ BiDi transceivers would provide only 20 Gbps bandwidth per link, which is half of the customer requirement. Eight SFP+ LR or SR transceivers would provide 80 Gbps bandwidth per link, which is more than the customer requirement, but they would also require eight fiber strands per link, which is more than the customer’s available fiber infrastructure. References:

• Aruba Transceiver and Cable Data Sheet (Aruba Networks)
• Designing Aruba Solutions Study Guide (HPE Press)
