The Unity XT 680 system supports four types of I/O modules: 12 Gb/s SAS back-end, 4-Port 16 Gb Fibre Channel, 4-Port 25 Gbps Ethernet, and 4-Port 10 Gbps Ethernet. The 12 Gb/s SAS back-end module provides connectivity to the disk drives and expansion enclosures, while the other three types of modules provide network connectivity to the hosts and clients. The Unity XT 680 system has six I/O module slots, three for each SP. The 12 Gb/s SAS back-end module must be installed in slot 0 of each SP, and the other modules can be installed in slots 1 and 2 of each SP. Therefore, the correct answer is D. 12 Gb/s SAS back-end. References:

• Dell EMC Unity XT: Hardware Information Guide
• Dell EMC Unity XT: Installation Guide

Packet Reflect is a feature that enables the Dell Unity XT system to use the same interface for outbound communication that was used for inbound communication. This feature is useful when the Dell Unity XT system needs to initiate outbound traffic to an external service, such as DNS, NTP, LDAP, or SMTP. By using Packet Reflect, the Dell Unity XT system can avoid routing issues, firewall restrictions, or network address translation problems that may occur when using a different interface for outbound communication. When a NAS server starts outbound traffic to an external service, the Dell Unity XT system uses Packet Reflect to send the packets through the same interface that received the packets from the external service. Therefore, the correct answer is D. Uses Packet Reflect for outbound communication. References:

• Dell EMC Unity: NAS Capabilities
• Dell EMC Unity: Unisphere Overview

When the Schedule Time Zone is changed under the Settings menu, it only affects the display of the time zone and the creation of new snapshot schedules. Existing snapshot schedules are not automatically adjusted to the new time zone, and will continue to run at the same absolute time as before. For example, if a snapshot schedule was created to run every day at 10:00 AM inGMT+1, and the Schedule Time Zone was changed to GMT+2, the snapshot schedule will still run at 10:00 AM in GMT+1, which is 11:00 AM in GMT+2. To update the existing snapshot schedules to the new time zone, the administrator must edit each schedule manually and change the start time accordingly. References: Dell EMC Unity: Snapshots and Thin Clones1, page 16.

When Advanced Deduplication is disabled on a LUN, the existing data that was deduplicated remains in its reduced state, and only new data written to the LUN is not deduplicated. To remove the Advanced Deduplication savings from the LUN, the administrator must perform a Local LUN Move operation, which copies the data from the source LUN to a destination LUN without deduplication. The destination LUN must have Advanced Deduplication disabled, and must be in the same storage pool as the source LUN. After the Local LUN Move is completed, the source LUN can be deleted and the destination LUN can be renamed as the original LUN. References: Dell Unity: Data Reduction2, page 9.

A drive partnership group is a collection of drives of the same drive type that have been combined into a hidden dynamic pool object. Each drive within a dynamic pool can only be part of a single drive partnership group, and a drive will never change the drive partnership group. The maximum size of a drive partnership group is 32 drives, regardless of the drive type or size. When expanding a dynamic pool, the system will automatically create new drive partnership groups as needed, and distribute the drives evenly across the groups. The number of drive partnership groups in a dynamic pool is equal to the number of drives divided by 32, rounded up to the nearest integer. References: Dell Unity: Dynamic Pools2, page 5.

The service task that the administrator should perform to fix the issue with minimal impact is Restart Management Software. This service task restarts the management software on both storage processors without affecting the data services or the host I/O. This can resolve the communication issues between Unisphere and the storage system. Reinitialize, Enable SSH, and Reboot Storage Processor are service tasks that have more impact and risk than Restart Management Software.

References: [Dell EMC Unity: Unisphere Overview], [Dell EMC Unity: Service Tasks]

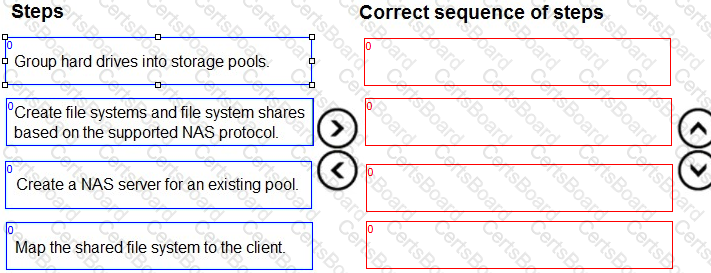

The correct sequence of steps to provision storage for SMB NAS clients is:

• Group hard drives into storage pools. This allows you to create a pool of storage resources that can be allocated to different types of storage objects, such as NAS servers, file systems, and LUNs.You can create different pools based on the performance and capacity requirements of your applications1
• Create a NAS server for an existing pool. A NAS server is a logical entity that provides file-level access to clients using SMB, NFS, or FTP/SFTP protocols. You need to create a NAS server before you can create file systems and shares.You can specify the pool, network settings, domain membership, and other properties for the NAS server2
• Create file systems and file system shares based on the supported NAS protocol. A file system is a logical container that stores files and folders on a NAS server. A file system share is a logical representation of a file system that can be accessed by clients using a specific protocol. For SMB NAS clients, you need to create SMB file system shares that support the SMB protocol.You can configure the share name, permissions, access policies, and other settings for the SMB share3
• Map the shared file system to the client. This allows the client to access the files and folders on the SMB share using a drive letter or a UNC path.You can use the Windows Explorer or the net use command to map the shared file system to the client4

The snapshot option that is set automatically when a pool is configured is the Pool Automatic Deletion Policy. This option determines how the system handles the deletion of snapshots when the pool reaches a certain threshold of capacity utilization. The user can choose between three policies: Never Delete, Delete Oldest, or Delete LowestPriority. The Total Pool Consumption and the Snapshot Pool Consumption are not snapshot options, but rather metrics that show the amount of pool space consumed by the pool data and the snapshots respectively.

References: [Dell EMC Unity: Storage Pools and RAID Groups], [Dell EMC Unity: Snapshots and Thin Clones]

A LUN is a logical unit of storage that is presented to a host as a SCSI device. A LUN is composed of one or more RAID extents, which are the smallest units of storage that can be allocated to a LUN. A RAID extent is a slice of a RAID group that is used to store user data and parity information. The size of a RAID extent depends on the RAID type and the drive type of the RAID group. For example, a RAID 5 extent on a SAS drive is 128 MB, while a RAID 6 extent on a NL-SAS drive is 256 MB. The LUN is partitioned into slices that match the size of the RAID extents, and each slice is mapped to a RAID extent from a RAID group in the storage pool. The LUN slices are distributed across multiple RAID groups to improve performance and availability. References:

• Dell EMC Unity: Storage Pools and RAID Groups
• Dell EMC Unity: LUN Management

To apply the management IP from the vSphere UnityVSA console, the system administrator must use the svc_initial_config command. This command allows the user to configure the initial network settings for the UnityVSA, such as the management IP address, subnet mask, gateway, and DNS servers. The svc_ipmi command is used to configure the IPMI settings for the UnityVSA, such as the IPMI IP address, username, and password. The svc_change_hw_config command is used to change the hardware configuration of the UnityVSA, such as the number of CPU cores, memory size, and disk size. The svc_inject command is used to inject faults into the UnityVSA for testing purposes.

References: [Dell EMC UnityVSA Installation Guide], [Dell EMC UnityVSA Command Line Interface Reference Guide]
